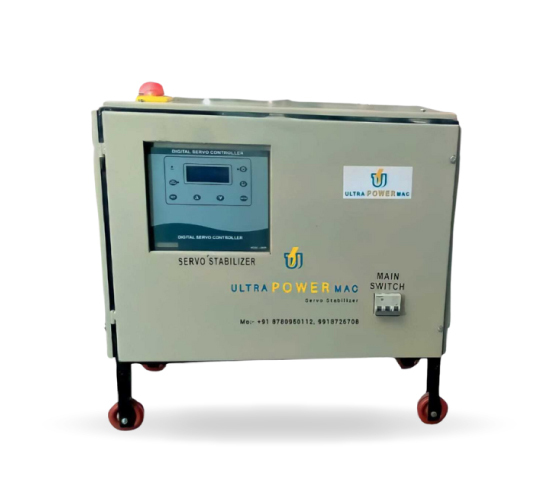

Three Phase Servo Voltage Stabilizer
Rs. 34,500/-
We Manufacturer Three Phase Servo Voltage Stabilizer. A Servo Stabilizer is a Servo motor controlled stabilization system that performs optimum voltage supply using a Buck\Boost transformer booster that captures voltage fluctuations from input and regulates current to the correct output. We Manufacture Stabilizer As Per Coustomer Requirement and Design Based on our Techincal Data and knowledge and with the latest technology.
Application
Automobile Industry, Ceramic Industry, Chemical Industry, Engineering Industry, Food Processing Plant, Hospitals, Hotel/ Restaurant/ Resorts, Oil and Gas Industry, Office (Bank, Corporate Office etc.),Pharmaceutical Industry, Plastic Industry,Residency/ Farmhouse, School/Collage, Textile Industry.
| Sr. No. | Detail | Description |
|---|---|---|
| 1 | Rated Capacity | 20 KVA |
| 2 | Phase | Three Phase |
| 3 | Usage/Application | Commercial |
| 4 | Input Voltage | 340-480VAC, 370-470VAC,360-480, 300-500VAC, or AS per Customer Requirement |
| 5 | Output Voltage | 380V/400V/415V ±1% (As per Customer requirement) |
| 6 | Control Type | Micro controller |
| 7 | Weight | 90 Kg |
| 8 | Current Type | Ac |
| 9 | Frequency | 50 Hz |
| 10 | Efficiency | Less than 98% |
| 11 | Warranty | 1 Year |
| 12 | Model Name/Number | UPMVCSAC20KVA |
| 13 | Transformer | Buck Boost |
| 14 | Display Type | Digital Display |
| 15 | Is It Portable | Portable |
| 16 | Automation Grade | Automatic |
| 17 | Size | 27/14/19 |
| 18 | Body Material | MS |
| 19 | Brand | Ultra power mac |
| 20 | Country of Origin | Made in India |
| Sr. No. | Detail | Description |
|---|---|---|
| 1 | Make | ULTRA POWER MAC |
| 2 | Input Voltage | 340-480/360-470/370-470/300-500 |
| 3 | Output Voltage | 380/400/415 volts +-1% |
| 4 | Effect of Power Factor | Nil |
| 5 | Controller Type | Digital Micro controlled based |
| 6 | Cooling | Air Cooling |
| 7 | Type | Suitable For: 1.100% UNBALANCED LOAD 2.100% UNBALANCED SUPPLY |
| 8 | Application | Indoor Type |
| 9 | Phase | 3-Ph, 4 Wires |
| 10 | Frequency | 50 HZ |
| 11 | Wave form distortion | Nil (Negligible) |
| 12 | Response time | Instantaneous(Mili sec) |
| 13 | Mode of Operation | Automatic |
| 14 | Duty Cycle | Continuous 24 Hrs |
Features & Benefits
Input High and Low Voltage Cut off
Output High and Low Voltage Cut off
Overload and Short Circuit Protection
Set Output Voltage (+ OR Minus 1%)
Onload Changeover Provision
Alaram System
Prevent Equipment Breakdown
Saving on Power
